Flowers and Fruits, part 1: Flowers The
flower is the centerpiece

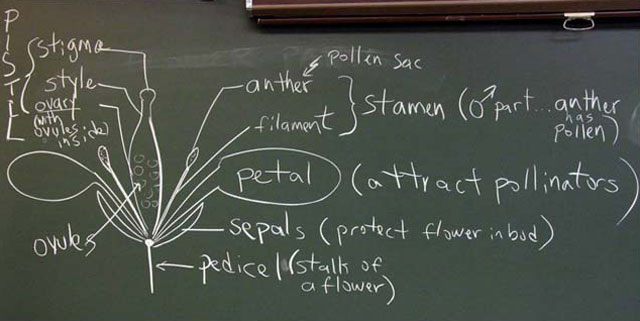

of angiosperm reproduction. Named in order from bottom to top (as
plants actually grow), a typical flower is a collection of parts, seen below
in a very elegant diagram as presented to introductory
biology students at a major midwestern university.
 Pedicel:
the stalk of an individual flower.
Sepals (collectively termed "calyx"): small green leaflike appendages that protect the flower bud. Petals (collectively termed "corolla): large colorful appendages that attract pollinators. Stamens (collectively termed "androecium"): male organs consisting of a slender supporting filament tipped by the anther, which is a sac containing pollen grains. Each pollen grain contains two sperm cells, one of which typically fertlizes an egg in the female portion of a flower on another plant. Pistil (also called "gynoecium"): the female part of the flower, with three parts: the lowermost, eventually seed-containing ovary, the style which serves as a conduit between the ovary and the uppermost part, the pollen-receptive stigma. Below, cut-leaved toothwort. This is a woodland spring wildflower, one of many such plants that take advantage of the brief period when it is both sunny and warm in the forest --April through early May. MOUSEOVER the image to see the parts labeled.  Toothwort flowers each have a calyx consisting 4 sepals, a corolla of 4 petals and an androecium of 6 stamens (of which 4 are long and two are short). There is a single pistil, but it is actually composed of two fused units (carpels). Below, white trout-lily. This
is a woodland spring wildflower that sometimes occurs in prairies as
well.
MOUSEOVER
the image to see the parts labeled.
White trout-lily has a calyx of three sepals and a corolla of three petals, but they are nearly indistinguishable from one another and are thus sometimes called "tepals." The androecium consists of 6 stamens. There is a single pistil, but it is actually composed of three fused units (carpels). Below, wild
geranium. This is a late-sping woodland wildflower. It demonstrates
a feature of timing called "protandry," a word that translates to
"male first." This is a floral mechanism that
minimizes
self-pollination by having the male and female sexual
parts mature
at separate times. The newly-opened
flower on the right has its stamens freshly burst open to
release
their pollen
while at the same time its stigmas
are clasped
together, preventing pollen deposition there. Contrast that with the
(very) late-stage flower on
the left (from which petals have recently fallen), that shows
the expanded and
receptive stigma of the female phase.
MOUSEOVER the image to see the parts labeled.  Below, rose-gentian. This is a late summer wildflower of open meadows and prairies.
MOUSEOVER the image to see the parts labeled. Below,
ohio spiderwort. This is a prairie wildflower, one of the few to
flower in spring. Several narrow leaves attached below the flower
clusters assume an angled arch shape that is suggestive of a spider.
MOUSEOVER the image to see the parts labeled.  Spiderwort has a calyx of 3 sepals and a corolla of 3 petals. The andorecium consists of 6 stamens, with filaments that are distinctively long-hairy. There is a single pistil composed of 3 fused units (carpels), Below, pawpaw. This is a
clonal understory tree
of tropical affinity. It produces deep maroon flowers that
develop
into soft greenish yellow fruits shaped roughly like an
eyeglasses-case. For the picture, two foreground petals were removed to reveal the stamens and the pistil.
MOUSEOVER the image to see the parts labeled.  Pawpaw flowers have a calyx of 5 sepals, a corolla of 5 petals, and an indeterminate number of stamens. The pistil consists of two separate units (carpels). Below, dodder. This is a
parasitic twining vine closely related to the morning-glory, that occurs as sprawling spaghetti-like masses on soft-stemmed
herbaceous plants. In central Ohio, dodder seems to be especially common along watercourses.
MOUSEOVER the image to see the parts labeled.  Dodder
has a calyx of 2 sepals, a corolla of 5 fused petals, and an androecium
of 5 stamens alternating with the corolla-lobes. The pistil consists of
two fused units (carpels).
|
